Regions, Find, Dimension

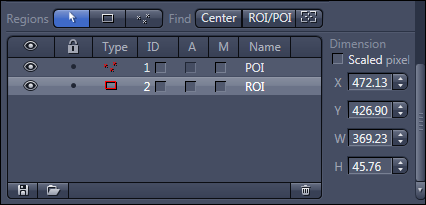

Regions, Find, Dimension

Regions and Find tool bar

Parameter

Description


Selection mode

Selects the ROIs or POIs in the image area. If you are currently in another mode, you can switch back to the Selection mode using this button.


Draw rectangle

Draws in a rectangle (Region of Interest (ROI)) that is always parallel to the edges of the image.


Draw marker

Draws in a marker point (Point of Interest (POI)).


Center

Moves the stage to the center of the opened image.


ROI/POI

Moves the stage to the selected ROI/POI.


Show stage position

Shows the current stage position as a rectangle in the image.

Dimension section

Here you see coordinates and dimensions of the selected graphical element in the list. If the Scaled checkbox is activated, the unit is µm, otherwise Pixel.

  • Parameter X: Shows the horizontal position (x coordinate) of the center of the graphical element.
  • Parameter Y: Shows the vertical position (v coordinate) of the center of the graphical element.
  • Parameter W: Shows the width of the graphical element.
  • Parameter H: Shows the height of the graphical element.

Graphical elements list

Here you see the list of all ROI/POI which are drawn in.

Parameter

Description

Eye symbol

Shows or hides the ROI/POI in the image.

Lock symbol

Locks a ROI/POI to prevent changes.

Type

Displays the icon for the tool type (ROI/POI). To format a graphic element, double-click on the icon. The Format Graphic Elements dialog opens.

ID

Only visible if the Show All mode is activated.

Displays the ID for the graphic element. To do this, activate the checkbox at the corresponding list entry.

A

Only visible if the Show All mode is activated.

Displays annotations for a graphic element (ROI). To do this, activate the checkbox at the corresponding list entry. Then double click on the checkbox. The Format Graphic Elements dialog opens. Choose an annotation you want to have displayed within the image from the Annotation dropdown list.

M

Only visible if the Show All mode is activated.

Displays measurement data for a graphic element. To do this, activate the checkbox at the corresponding list entry.

Name

Displays the name of the graphic element. To change the name, double-click in the Name field. Then enter the text of your choice.
