Only visible if a sample carrier is selected.

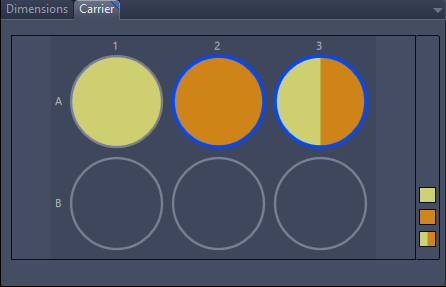

Here you can see a graphical preview of the sample carrier being used.

Only the containers/wells whose tile regions and positions were set up with the Tiles Carrier Toolbar or the Positions Carrier Toolbar will be taken into account.

Please note the following features of the display:

Symbol

Description

/

Empty containers/wells, meaning that no tile regions or positions were set up with the Carrier option, are represented by a grey container/well.

/

The currently Active container/well is represented by a blue border.

/

A container/well only filled with Tile Regions is represented by a yellow filled container/well.

/

A container/well only filled with Positions is represented by an orange filled container/well.

/

A container/well filled with Tile Regions and Positions is represented by a half yellow, half orange filled container/well.

Right-click opens a small context menu. Here you can copy the contents of the selected well, or paste the contents to the selected or all wells.
