You can define individual measurement features for each class. You can copy the measurement features defined for one class to the other classes via Copy to all.

1. Select the class for which you want to define measurement features, and click Edit. From the list of features on the right you can add features to the selected features list on the left.
2. These features are automatically calculated for every object during image analysis. All classes have the ID of the parent and ID as default features. With these IDs you can later group the associated parameters from the result excel lists, if necessary.
3. The class Ring additionally has Area and Count as default parameters.

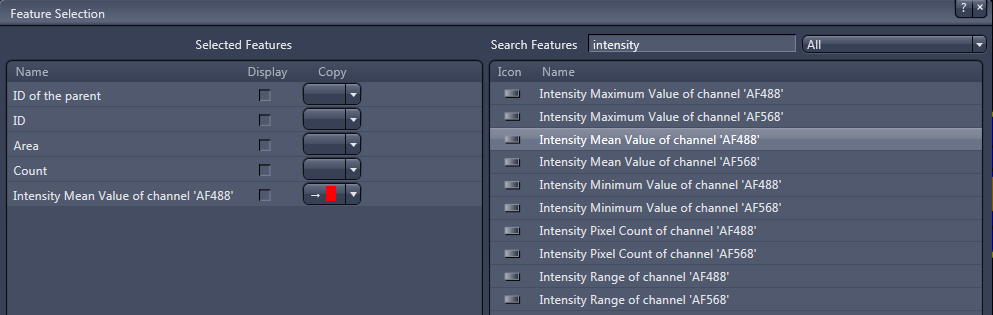

4. To attribute the mean intensity for channel AF488 (the mitochondria) measured on the Ring to the Primary Object, select Ring and click Edit. The Feature Selection window opens.

2. From the feature list on the right select Intensity Mean Value of channel AF488 and add it to the selected features on the left. In the Copy column, from the drop-down menu in the Intensity Mean Value of channel AF488 row, click .
3. This measurement feature is copied to the corresponding Primary Object.
