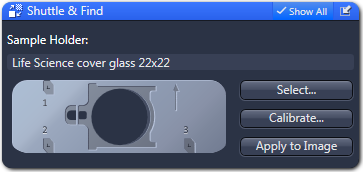

Shuttle & Find Tool

Here you choose and calibrate your sample holders. The tool is visible only if you have activated the Shuttle & Find checkbox in the Experiment Manager.

Parameter	Description
Sample holder	Here you see the name and preview of the selected sample holder.
Select...	Opens the Select Template dialog. There you select the preferred sample holder or define new holder templates, see Selecting the Sample Holder.
Calibrate...	Opens the Sample Holder Calibration Wizard. There you can calibrate the selected sample holder.
Apply to Image	Only visible if the Show All mode is activated. Use this button only when you forgot to calibrate the holder before you acquire the image. Applies a calibration to an acquired image. Do not remove the sample out of the correlative holder between image acquisition and calibration.

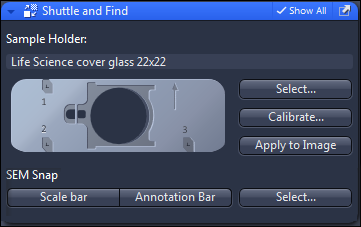

Shuttle & Find tool for SEM

Only visible if you have started the ZEN SEM software.

The tool window is adapted to the requirements of the correlative workflow on a SEM. Therefore three additional buttons are available.

Parameter	Function
Scale bar	Adds a scale bar to the snapped (acquired) image.
Annotation bar	Adds an annotation bar to the snapped (acquired) image.
Select...	By clicking on this button a dialog opens to select parameters for the annotation bar. You can select max. 9 parameters for the annotation bar.
