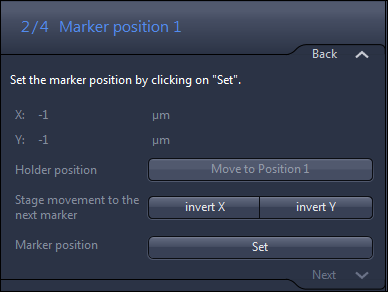

Step 2-4: Calibration
In steps 2-4 of the wizard you will be guided through the calibration procedure.
|
Option |
Function |
|---|---|
|
Holder position |
Move to Position 1 button Moves the stage to marker position 1. This is possible only if the first position was set before and x/y coordinates are given. Current button Only visible for marker position 2 and 3. Moves the stage to the current marker position. This is possible only if the current position was set before and x/y coordinates are given. |
|
Stage movement to the next marker |
Here you can change the movement of the stage in x or y direction. This is necessary if during calibration the stage moves in the wrong direction. |
|
Marker position |
By clicking on the Set button, the actual marker position will be confirmed. |
Click Finish to leave the wizard.
