When no detailed sample information is necessary to identify regions of interest within the sections, you can skip this step and the following step 3 Ribbon imaging as well. You can then go on with the wizard step 4 Section specification.

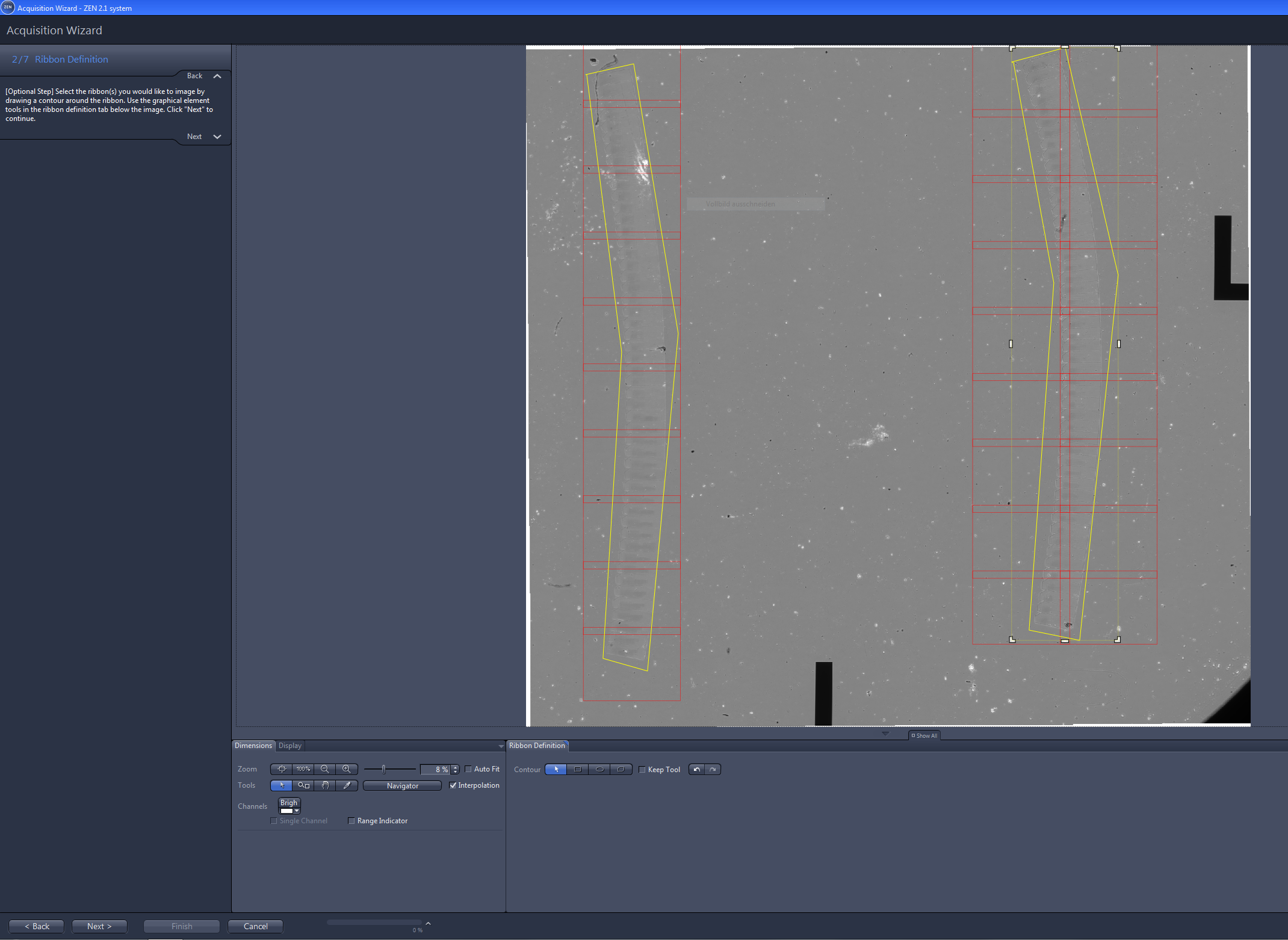

  1. You are in step 2/7 Ribbon Definition of the Acquisition Wizard.
  1. Use the tools on the Ribbon Definition tab to mark the contour lines of the ribbons which should be imaged. The contour lines are displayed in yellow color.
  2. The software will automatically create as many tiles as necessary for imaging the ribbons. The number of the tiles depend on the selected objective. The frames of the tiles will be displayed in red color.
  3. When you have marked the contours, click on Next.
