In this step all sections will be identified by using a section detection algorithm. In summary, you have to mark the outline of at least one section on each ribbon. Then the section detection algorithm will detect the sections of the ribbon automatically. If the automatic section detection does not work properly or if not, all sections are detected, you can stamp in the missing sections. It is also possible to edit the shape, location and orientation of the section frames afterwards.

  1. You are in step 4/7 Section Specification.
  1. On the Section Definition tab select the Polygon tool.

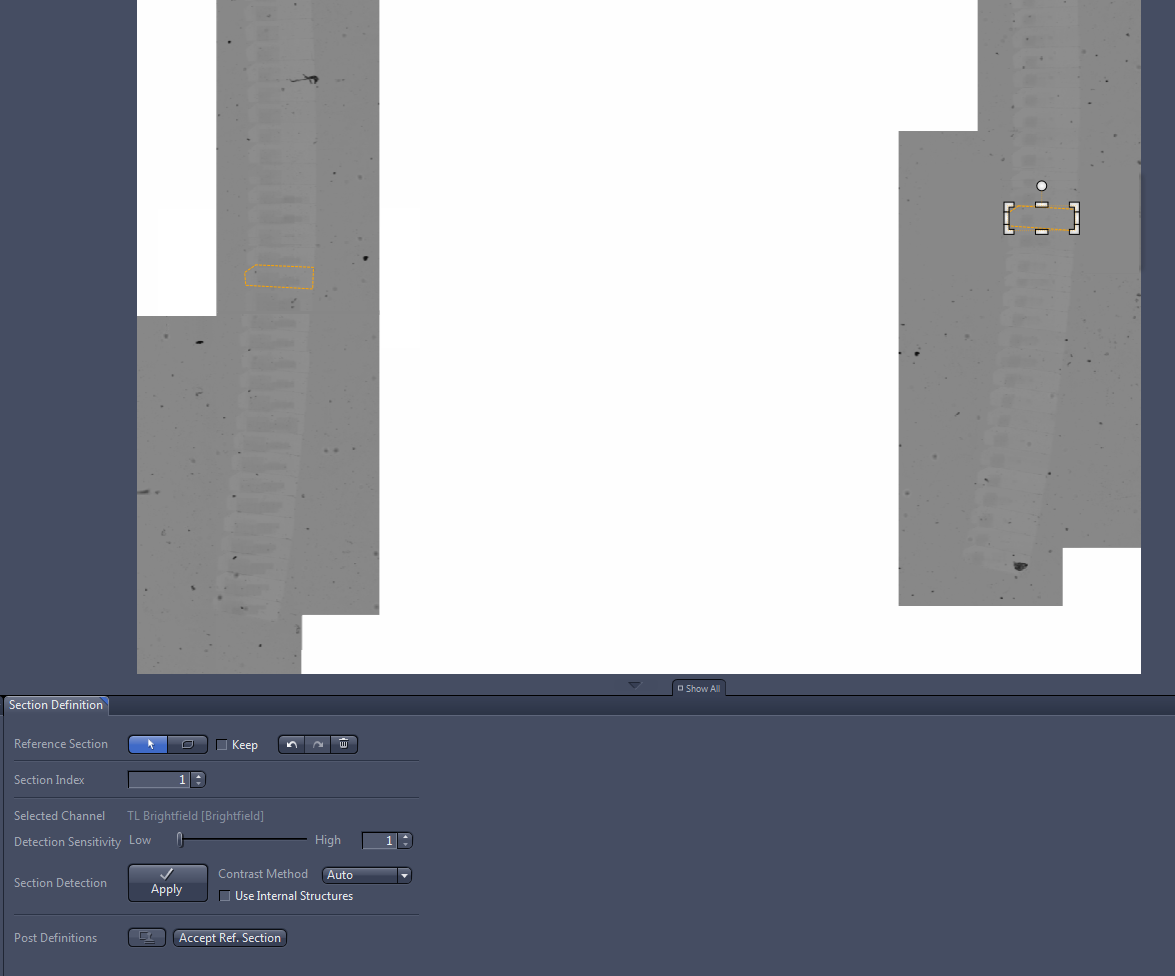

  2. Mark the outline of one section in each ribbon. The outlines of these reference contours are displayed in orange color.
  3. Click on Apply.

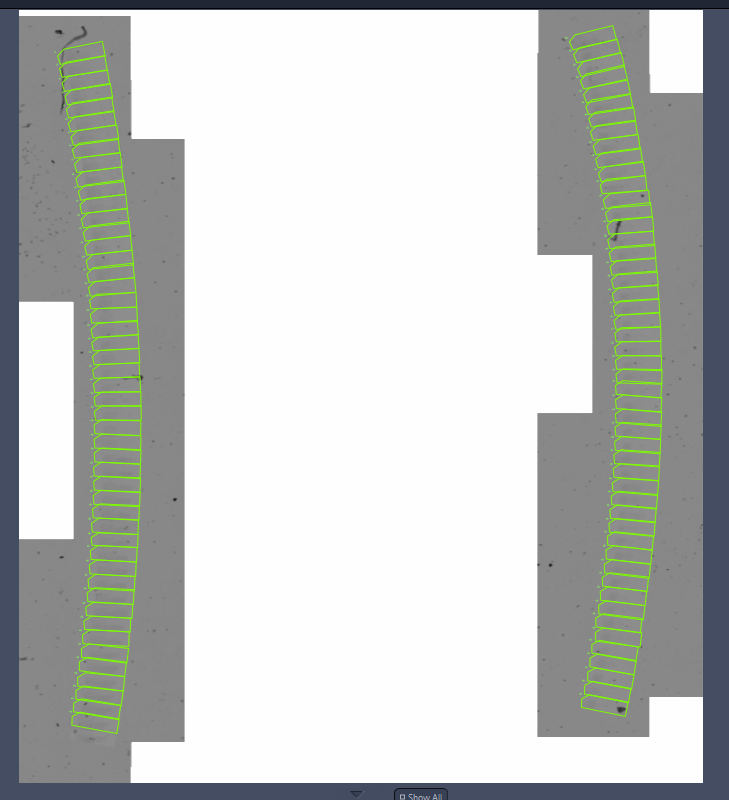

  4. The software will try to detect the remaining sections automatically. When finished the detected sections appear in green color.

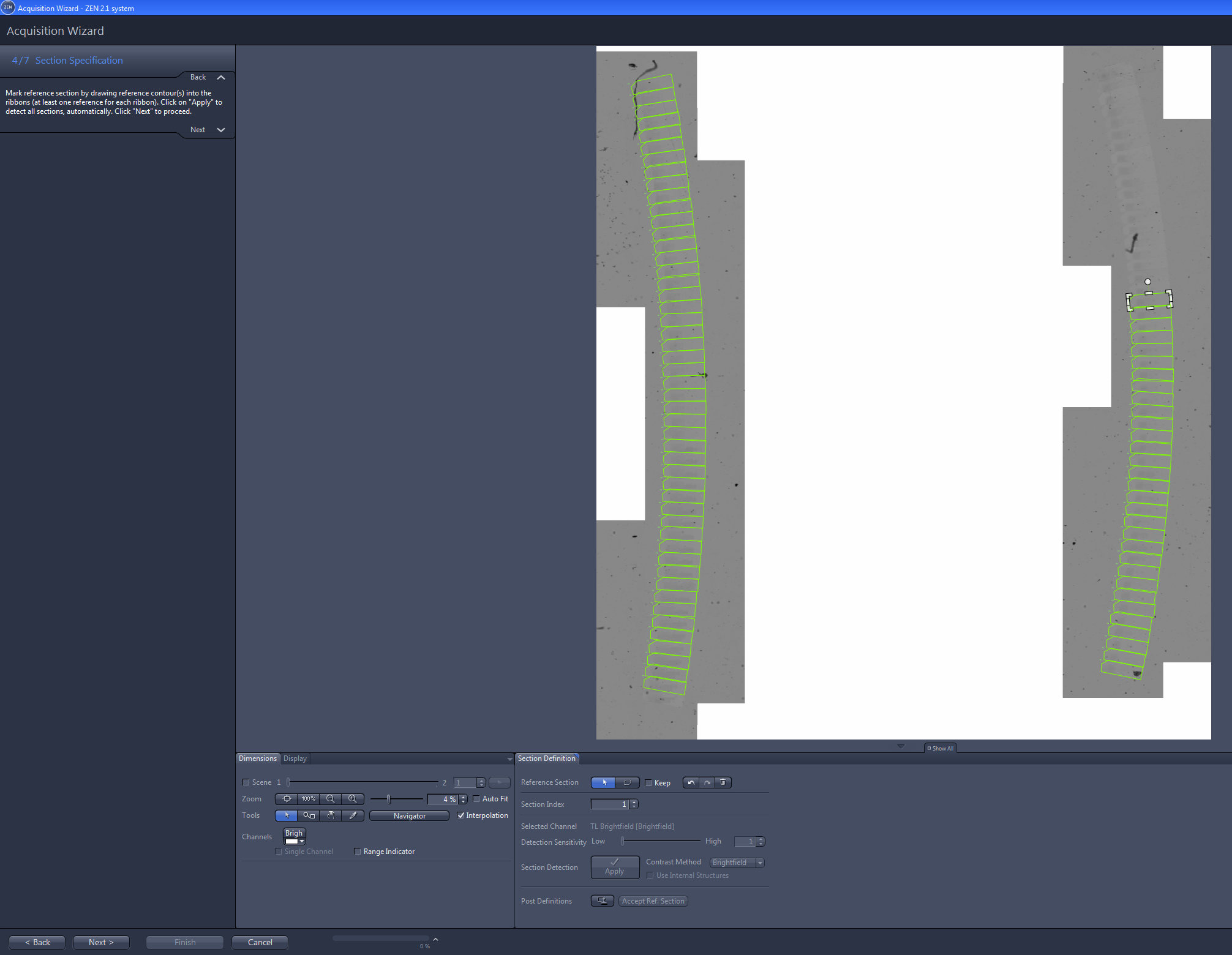

  5. If not all, sections can be detected, mark the last section which was detected and click on the Stamp tool in the Section Definition tab.
  6. Stamp in the missing sections so that each section is marked.

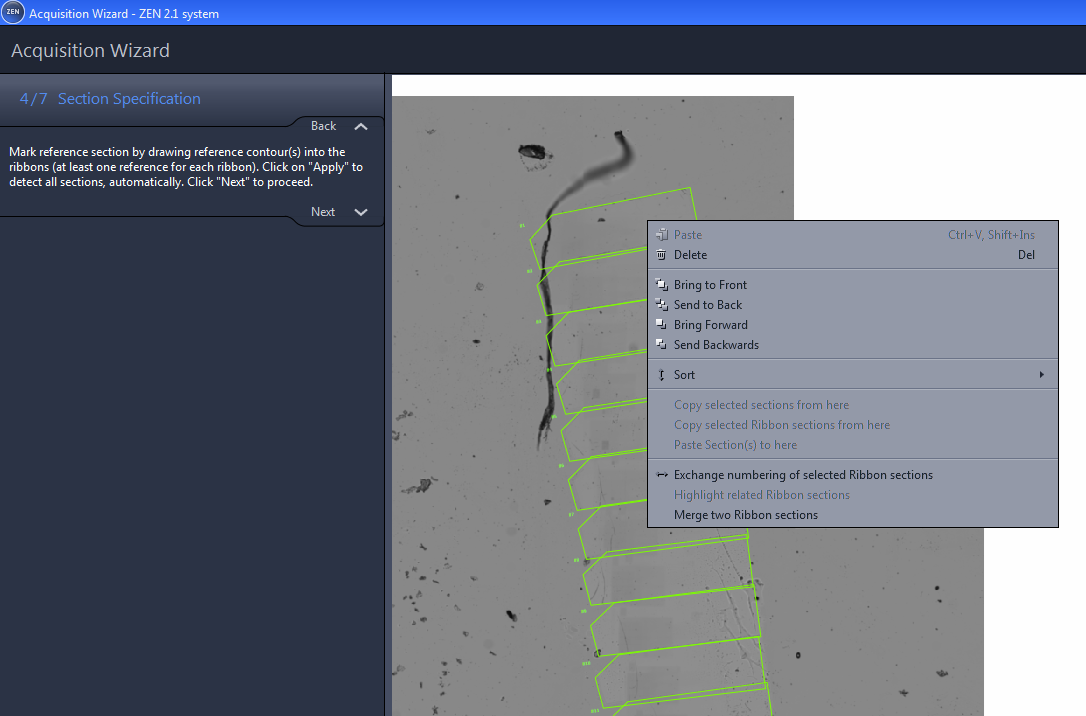

  7. Please take your time to check the numbering carefully. A correct numbering is prerequisite for a successful alignment of the sections, afterwards. The numbering of the ribbons depends on how you deposited the ribbons during the cutting. To adjust the numbering you have several options available in the context menu. To open the context menu move the cursor over a section and right-click with the mouse.
  8. If the numbering is correct, proceed to the next wizard step by clicking on Next.
