The script runtime conditions describe how the different steps of the experiment Feedback Script are executed. You can choose between Free Run and Synchronized execution.

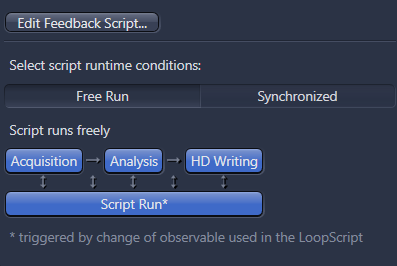

1. Select Acquisition tab > Experiment Feedback tool, and select Free Run.

2. The execution of all steps of the Feedback experiment are independent and not executed sequentially.

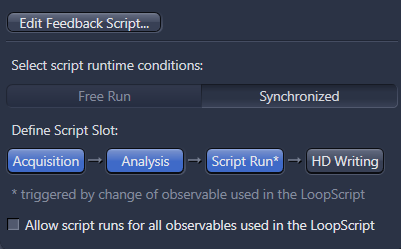

1. Select Acquisition tab > Experiment Feedback tool, and select Synchronized.

2. Click on the blue buttons to define the script slot and to change the execution order of the script.
3. The selected steps are executed sequentially.

• The script run starts after the acquisition together with the online image analysis. Therefore, the script execution, image analysis and writing of the image subblock to the hard drive are not in sync.

• The online image analysis starts after the acquisition of a frame is finished. Only when the image analysis is finished, the next script run is triggered. This guarantees that all analysis results exist and can be used in the feedback script. The writing to disk is not synchronized.

• The online image analysis starts after the acquisition of a frame is finished. The image data are written to disk and only when all tasks are finished the next script run is triggered. This guarantees, that all analysis results exist and the image data is stored on disk before the next script run is triggered. This option is relevant in case the script starts an external application to analyze the data.
