The compartment operator generates different outputs. Each of them can be enabled and named freely by the user. Multiple outputs allow to better group and distinguish between the different features available.

Main Compartment output

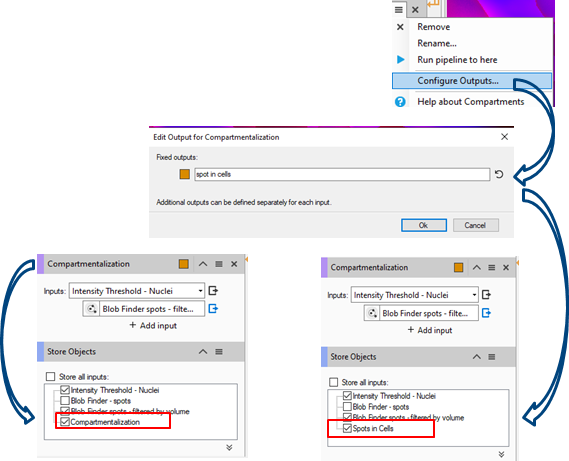

From the operator menu, the main compartment TAG can be renamed. By default, the TAG name is the same

Click on the colored box to change the objects colorization.

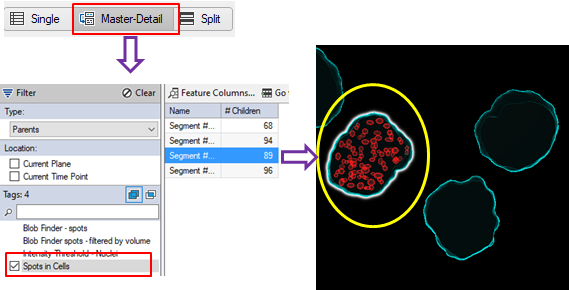

  • Main Compartment TAG in the objects table

Each parent structure reports the children belonging to it accordingly to the Compartmentalization settings.

Parents Compartment output

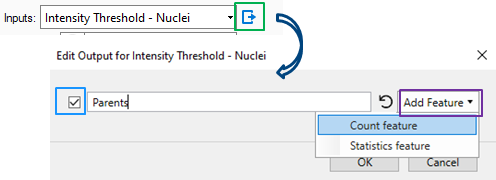

A new TAG collecting the parents structures can be created.Press the «Configure output» icon on the right of the parent selection.

Check ON to activate the option and type the Tag name in the text box.

Pull down the list of additional Features on the right in order to create group statistics

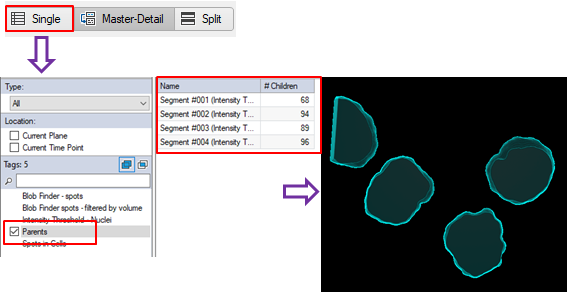

  • Parent Compartment TAG in the objects table

The parent structures are shown with the related teatures.

Children Compartment output

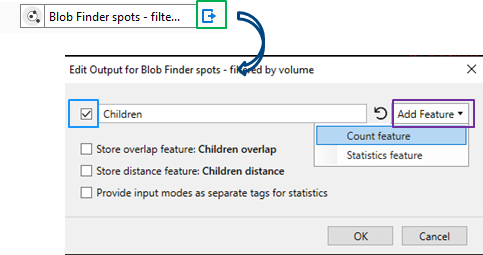

A new TAG collecting the parents structures can be created.

Press the «Configure output» icon on the right of the parent selection.

Check ON to activate the option and type the Tag name in the text box.

Pull down the list of additional Features on the right in order to create group statistics.

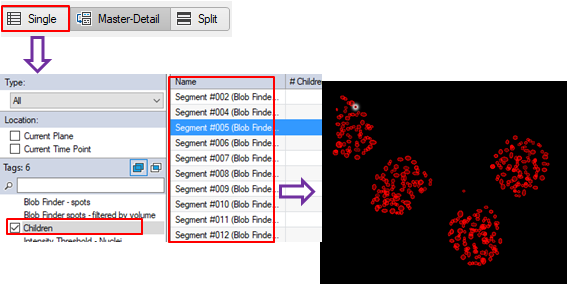

  • Children Compartment TAG in the objects table

All the children objects are shown with the related teatures.

Additional Children Compartment output

Additional features related to a specific relationship criteria, can be set.

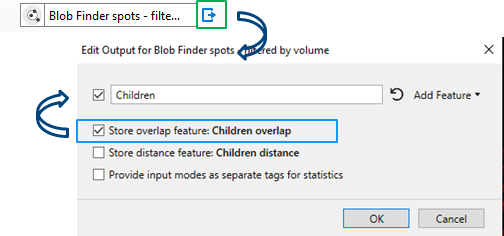

  • Store overlap feature: Children Overlap
  • Store overlap feature
  • Saves in the objects table a custom feature reporting the children overlap ratio. The feature is available for the objects included in the «Children» compartment TAG.

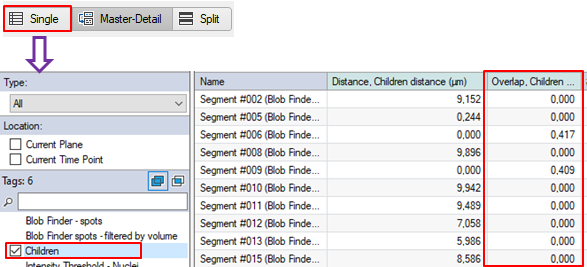

    • Additional «Store overlap feature» in the objects table.
    • Values in a range of 0.0 to 1.0.
    • Value equal 1.0 means object fully compartmentalized.
    • Note: The Store overlap feature option is available in the Edit Output dialog box only if the related criteria is ON.

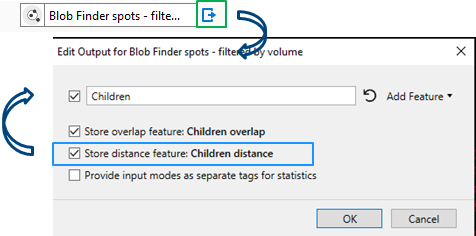

  • Store distance feature: Children Distance
  • Store distance feature saves in the objects table a custom feature reporting the children distance from the parent surface. The feature is available for the objects included in the «Children» compartment TAG.
    • Additional «Store distance feature» in the objects table.
    • Note: The Store distance feature option is available in the Edit Output dialog box only if the related criteria is ON.

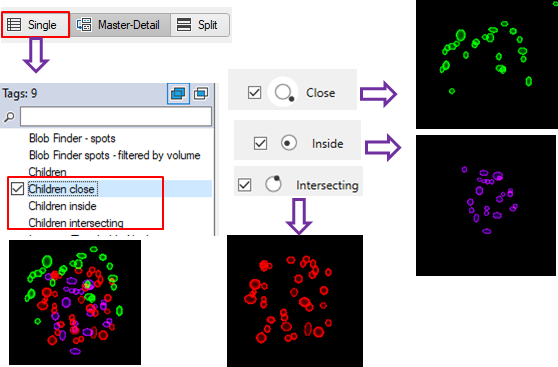

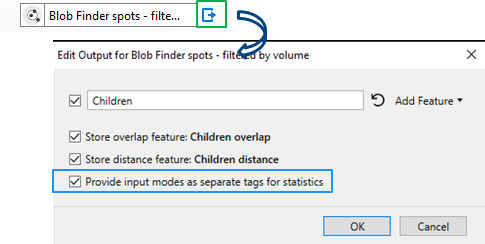

  • Provide input modes as separate Tags for statistics
  • Provide input modes as separate Tags for statistics creates new Tags grouping the children objects belonging to each of the active option described here above.
    • Additional «Provide input modes as separate Tags for statistics» in the objects table.
