Using the GPU package installation
This article provides background, download links and installation instructions for the stand-alone GPU package installation.
See also
Overview
- If you use ML and have a compatible GPU you should install this and use it
- The installation is normally part of the standard installation process
- If you've already installed the software, or you're installing it on an offline workstation, you can download and install this package independently using the instructions below
Introduction
With the release of Vision4D 3.6, arivis added the ability to use Deep Learning (DL) inference for segmentation of images. This can significantly improve the accuracy of segmentation of complex structures in a range of applications and images.
To optimize the DL operations we use the ONNX runtime libraries. These can be used with both GPU and CPU, but using the GPU to run these operations can dramatically improve the speed of processing. However, the GPU libraries are quite large (600MB) and only compatible with NVIDIA GPUs. Since not all users will require this, either because they have no need for DL or no compatible GPU, we do not include the GPU package as part of the Vision4D installation files and instead download it on request during the installation process.
Using the GPU for ML Operations

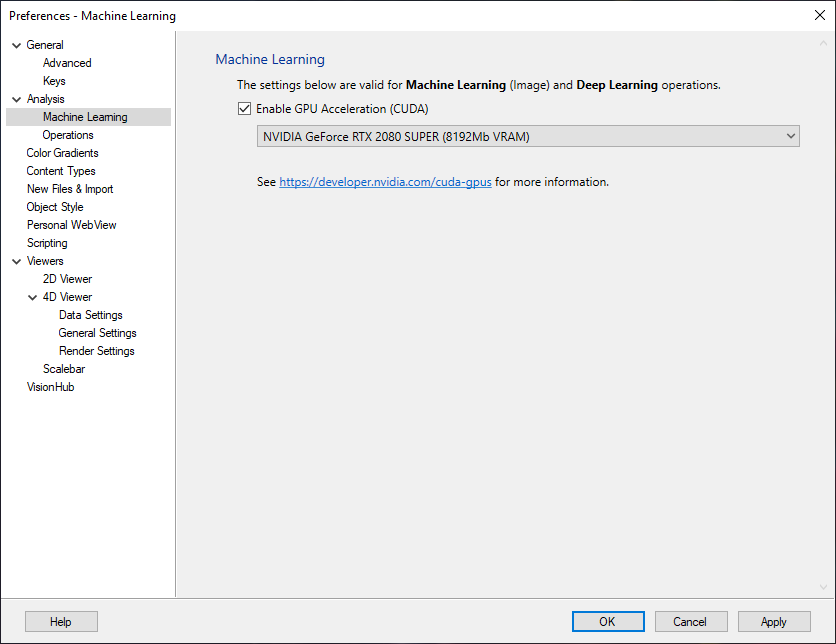

Once the GPU packages have been installed, the option to use the GPU for ML acceleration will appear in the application preferences:
Note that this option may remain greyed out if the GPU drivers that are currently installed are not compatible. In that case, the user should update the drivers and restart the system. Once this option is enabled the software will default to using the GPU for any ML operation.
Compatible GPUs
This package makes use of CUDA, a proprietary technology available on NVIDIA GPUs. Please see this Wikipedia article or consult the NVIDIA documentation to find out if your GPU is supported.
