Tracking cells or particles with lineage
Introduction

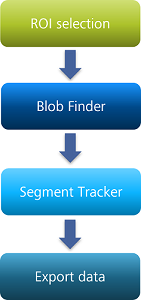

This guide explains you how to track cells or particles with lineage using the pipeline with the Blob Finder and Tracking operation. The purpose of the pipeline is to track objects, detected using the Blob Finder operation, gathering its motion features (direction, speed, linearity, and etc.) . Tracks division or fusion can be detected (lineage). It can be applied to cells, nuclei, or any detected structures.
Workflow
Activating the Sample Pipeline

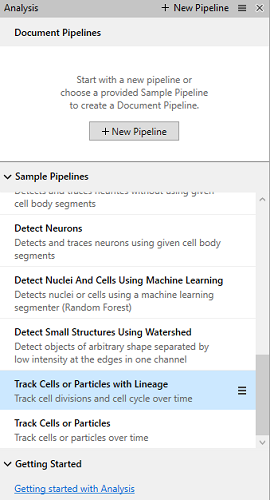

- In the Shortcut Toolbar, click Analysis Panel
.
- In the Sample Pipelines list, double-click the Track Cells or Particles with Lineage Pipeline.
- If you have activated a pipeline, it will be replaced by the new one.
You can open the appropriate How to guide. By hovering over a pipeline, this button
is displayed. When clicking on it, the option Open How to appears.
Viewing the results

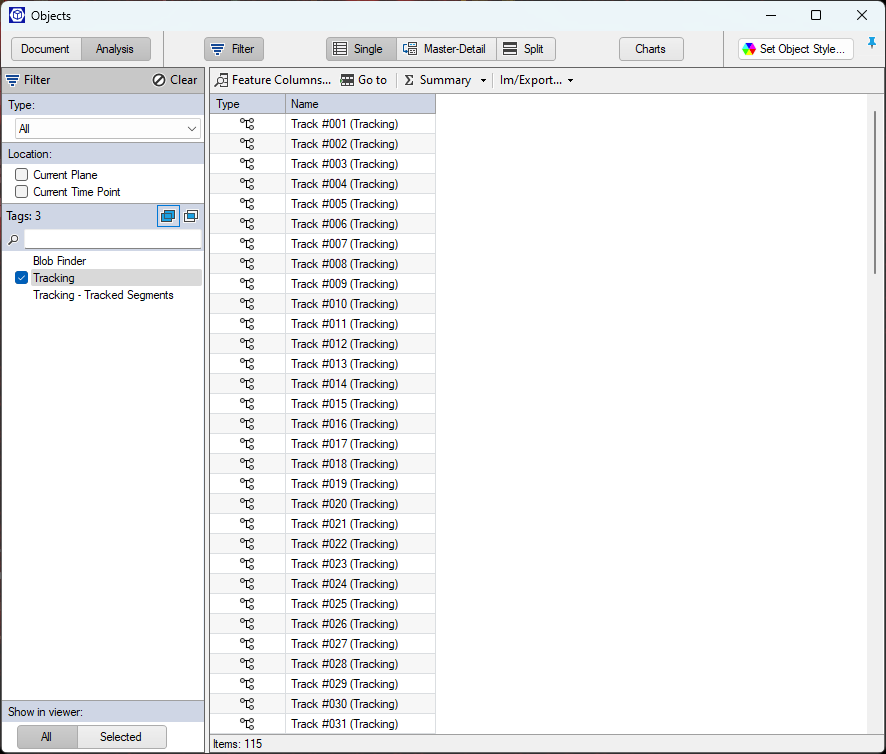

- If not already visible, open the Objects dialog. In Shortcut Toolbar, click Objects table
. - Measurements are now visible in the objects table.
- To add or remove table columns, click Feature Columns...
For more information, refer to the Online Help (F1).
