When we do volumetric rendering a few different things happen that we need to bear in mind.

First, 3D rendering is best handled by graphics cards which have their own dedicated memory, which is usually much less than the system memory. While most PCs have between 8-32GB of system memory, most GPUs only have between 4-12GB of VideoRAM. Of course, high-end computer systems can have a lot more than 32GB of RAM, but even very high-end GPUs rarely go above 32GB of VRAM.

32GB of VRAM is clearly a very large amount of video memory, and plenty to hold most but the largest of imaging datasets, but beyond a certain point the amount of memory available becomes less important than the speed at which the GPU can process and render that amount of data.

One really important requirement for a volumetric viewer is interactivity. Without it, it is very difficult to get any sense of depth and of the spatial relationships within a dataset. At a minimum, we need to be able to render images 10-20 times per second. The only way we can currently do this is by only loading into the GPU a manageable amount of information. What is considered a "manageable" amount of information will depend greatly on how fast the GPU is, and sometimes on the amount of VRAM available.

The first time that a user opens the 4D viewer after installing arivis you will see that the software does an automatic optimization of the 3D settings. This optimization is based on the amount of VRAM and the speed of the GPU. The amount of VRAM defines how much of a time series we can hold in cache to display it quickly when navigating through time (as far as the 4D viewer is concerned, each times point is essentially a whole separate stack). The speed of the GPU dictates the level of detail that we can display, or more precisely, the number of pixels we can display efficiently. For a low-end GPU, like what is included in so-called "on-board graphics", this might be as little as 16MPixels, for very high-end GPUs we might manage 8GPixels.

For reference, the Mega/Giga-pixel count for an image is the width x height x depth. So if your image is a 1000x1000x1000 cube, your image represents 1 billion pixels or 1GPixel.

So what happens if our image is larger than the maximum the GPU can handle smoothly? Simply, we downscale it to something more manageable. If the dataset is 3x larger than the GPU can handle we will load only a third of the total image. This happens automatically when you switch to the 4D viewer when the "loading data" progress bar shows at the bottom of the screen.

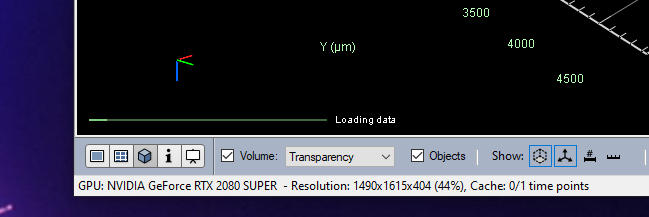

The other thing we can see right at the bottom of the window is the GPU that arivis detected and is using and the current resolution we have loaded for the current dataset. In our example above, we have downsampled the volume to 44% of the original image stack, which represents a volume of 1490x1615x404 pixels, or 0.9GPixels.

Note that for volume rendering we can only use one GPU since this is not a task that can be shared across multiple cards.

So what effect does this have on what we see on the screen?

First, it means that you will see that you can dynamically navigate through the dataset, and change visualization settings without a significant lag.

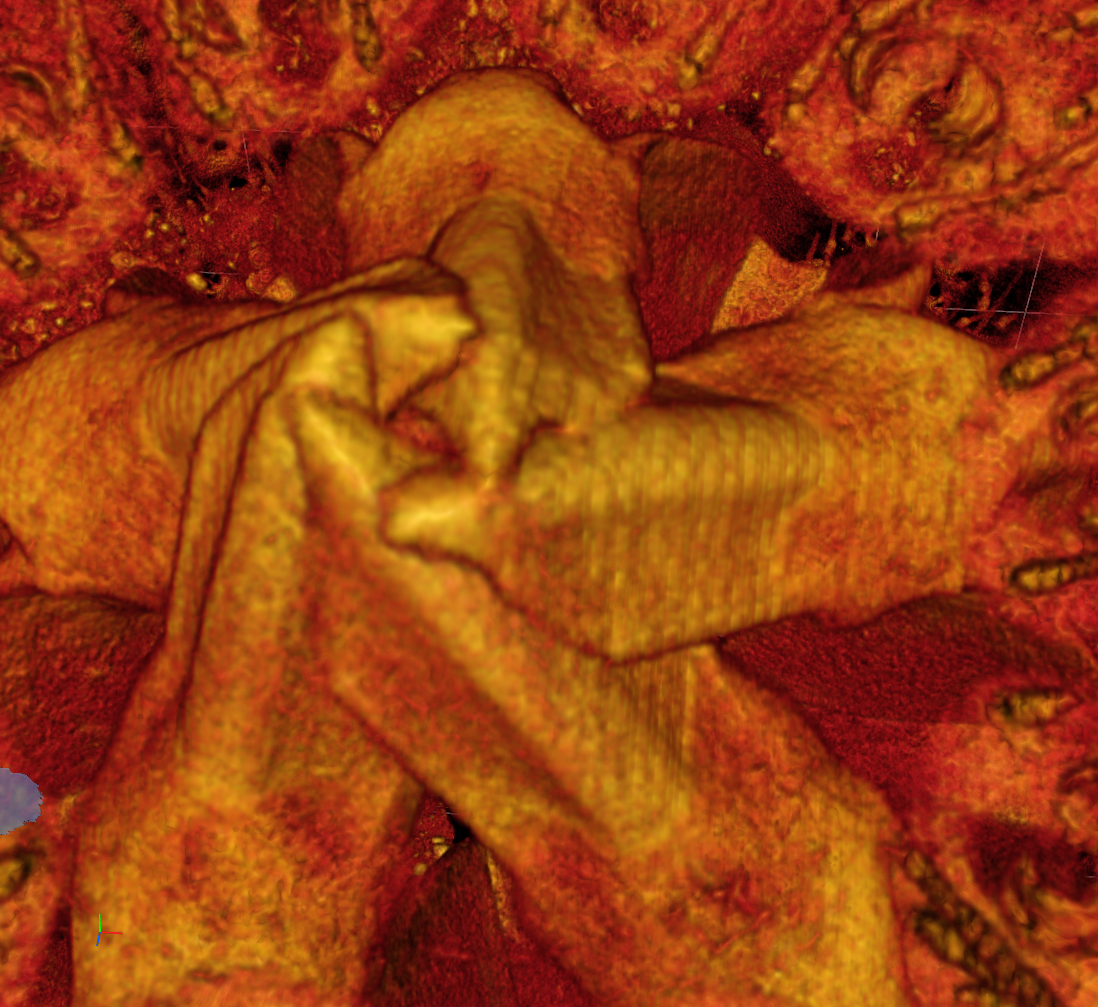

But second, it also means that you may not see some fine details so small objects might not be clearly distinguishable. Also, the level of downscaling together with patterns in the image can sometimes result in Moire patterns or stripes. The vertical stripes we can see in this example below are an example of sub-sampling patterns appearing.

This kind of pattern is caused by the downsampling strategy we use as we try to strike a balance between the quality of the render and the time it takes to downsample the data.

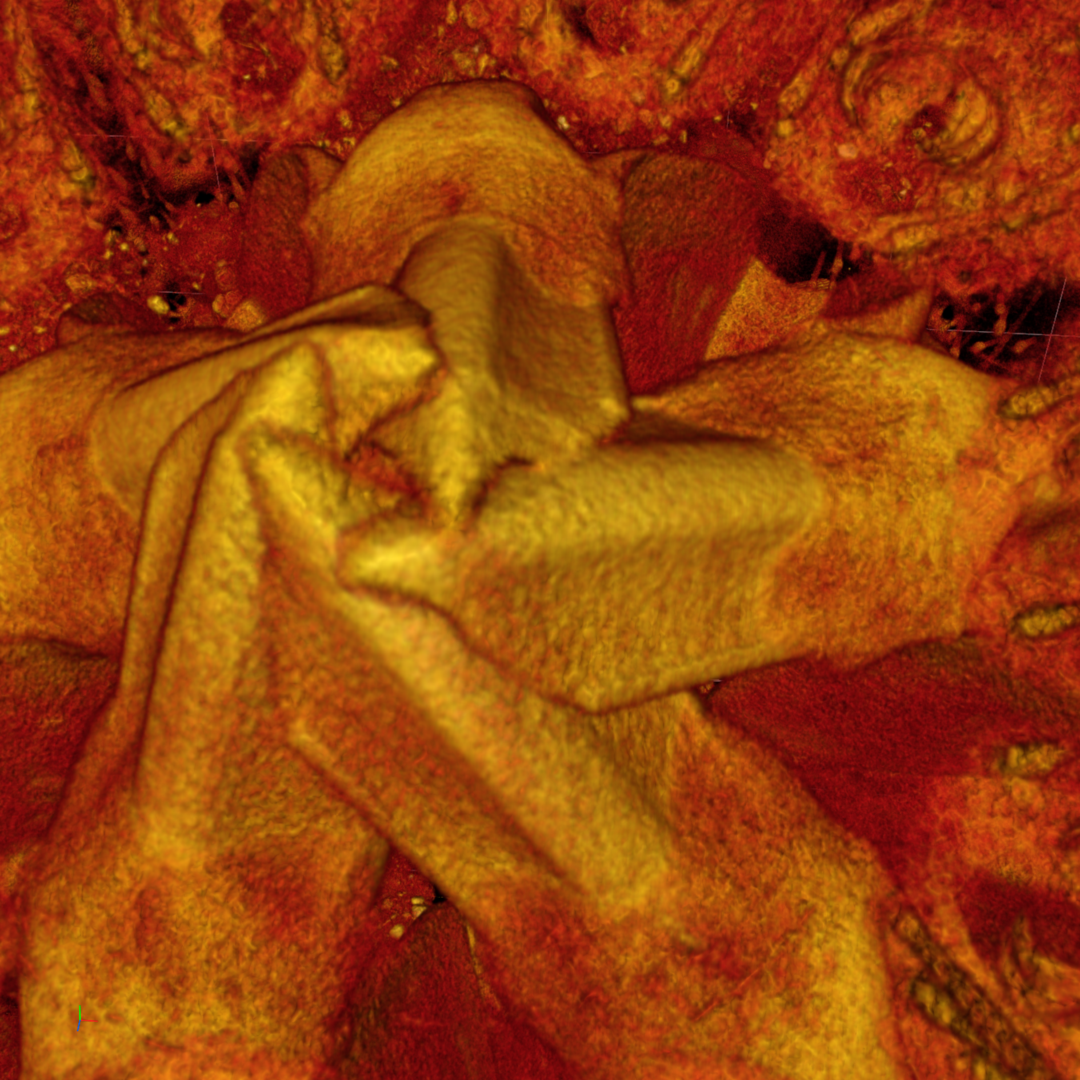

Note, however, that it is always possible to render full-resolution images if needed, though users should bear in mind that producing such renders requires a lot more computing resources and time:
