In order to run the image registration script, the corresponding python environment should be already installed on the workstation using the Anaconda distribution. Detailed instructions on how to set up this environment are provided in Install Anaconda Python for Vision4D article.

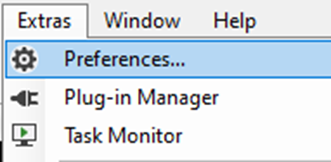

  1. Run arivis Pro (4.1.1 and next release) select the Preferences item from the Extras menu.

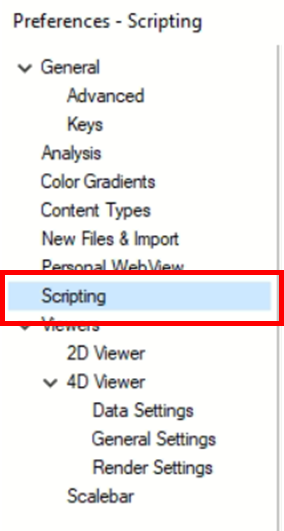

  2. On the left panel, click on the Scripting item.

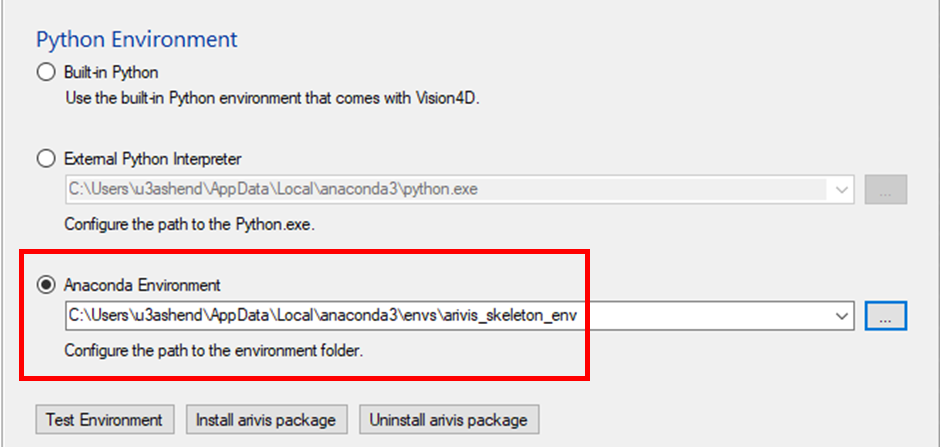

  3. Enable the Anaconda Environment option. Browse the Anaconda3 installation folder and select the arivis_skeleton_env created previously.
    Note: By default, the new environments are stored under the \envs folder located in the Anaconda3 installation folder  e.g. C:\users\xxxxxx\Anaconda3\envs\arivis_skeleton_env

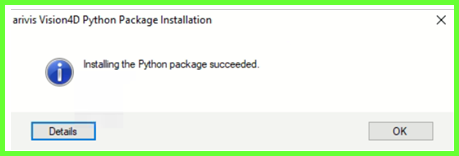

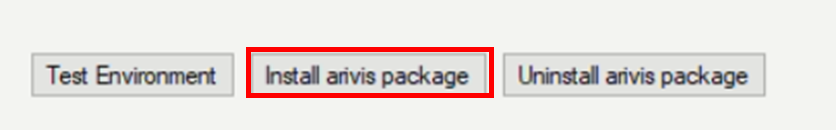

  4. Install the arivis package.

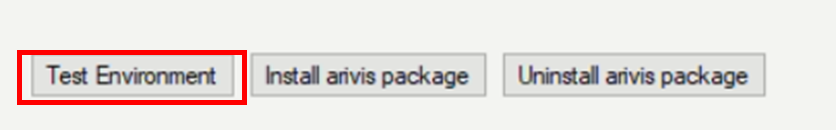

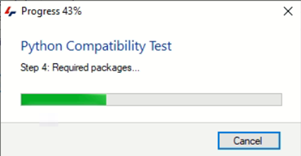

  5. Run the Compatibility test.
  7. Test completed successfully:

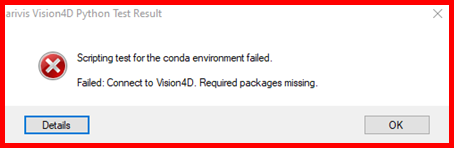

  8. Test failed:

    Note: If the above error message is issued, try again to install the arivis python package.
