Change Border Size Dialog

Parameter	Description
Total Tile Width	Displays the total tile width used by the network.
Total Tile Height	Displays the total tile height used by the network.
Border Size	Sets the border size of the tiles. The lower limit of the border size is zero and the upper limit is a quarter of the smallest dimension of the tile.
Tile Overlap	Displays the tile overlap which is the is the sum of the overlap on the left and right side, see Tile Border Size Example. It is updated according to changes of the border size.

Tile Border Size Example

The tile overlaps in % is the is the sum of the overlap on the left and right side. Consider the following two examples as illustration for the overlap:

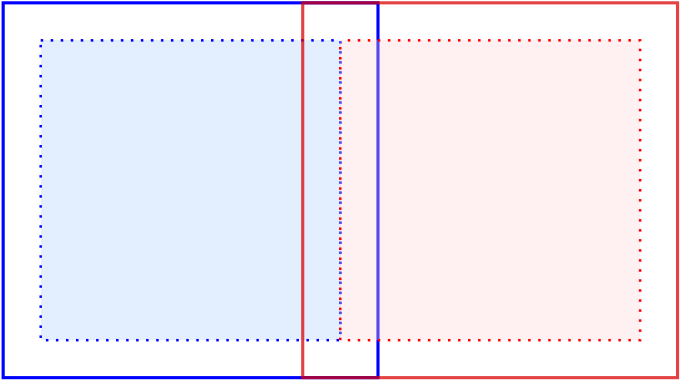

Border Size of 10 % with a resulting overlap of 20 %

Diagram of overlapping blue and red outlined rectangles with dotted inner blue and red boxes and two central vertical lines

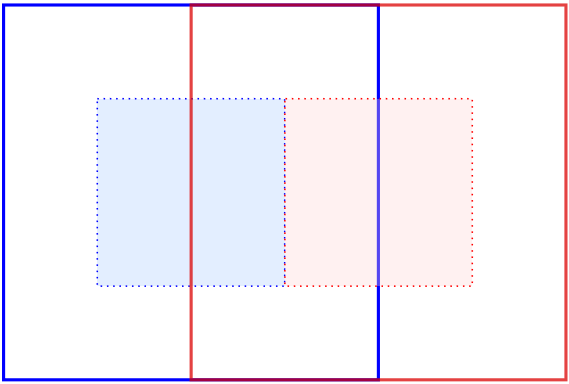

Border Size of 25 % with a resulting overlap of 50 %

Centered overlapping blue dotted left rectangle and red dotted right rectangle on white background framed by blue left and red right borders with two vertical lines
