Comparative Diagrams Live
This topic explains the specific comparison part of the Comparative Diagrams Live job template which is delivered with the software. We recommend that you read in advance the sections General Preparations and General Analysis Workflow to make yourself familiar with the general workflow.
Live Image Comparison

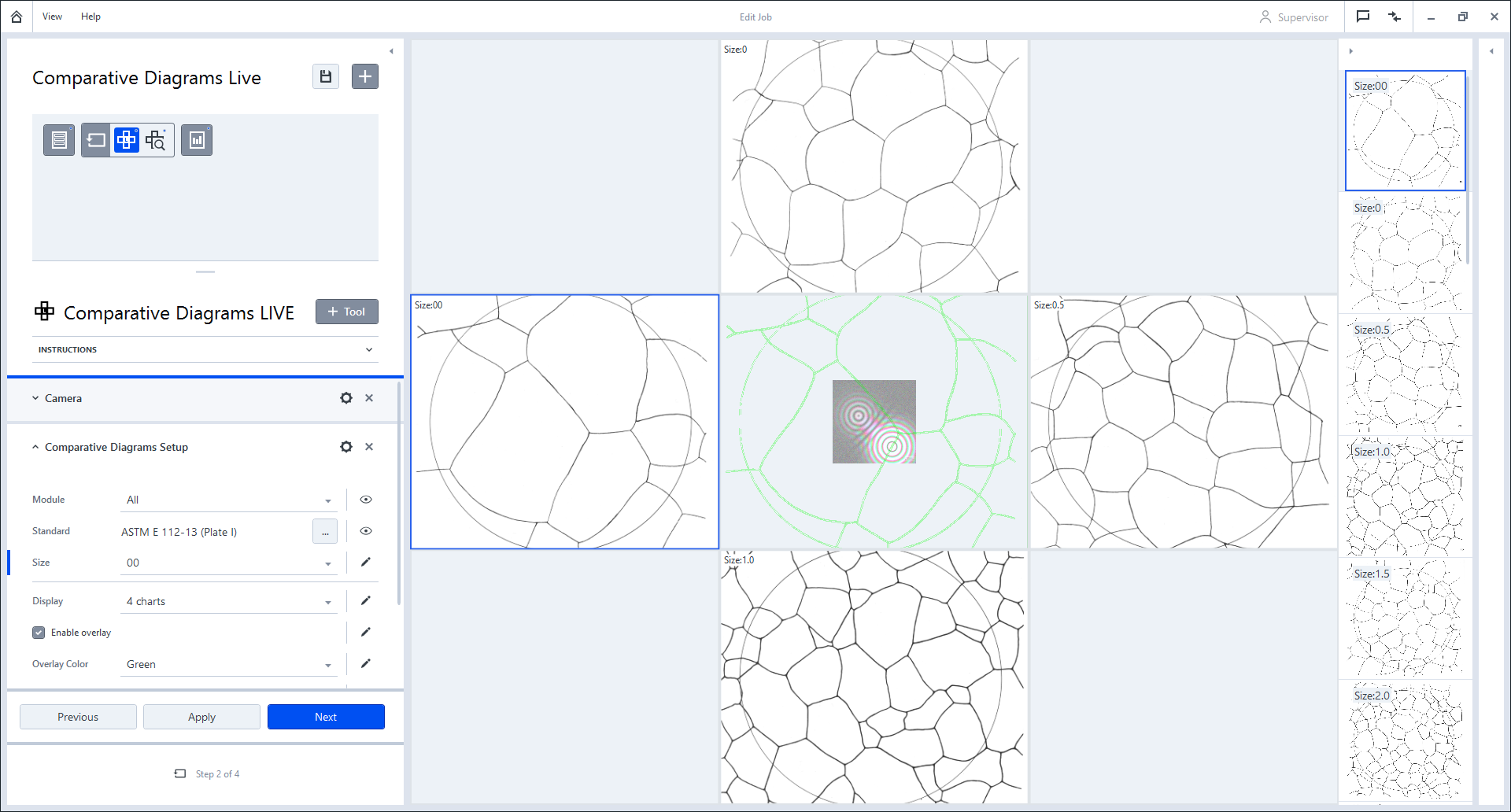

Comparing the live microscope image from the microscope camera with chart images from a standard is the central part of the Comparative Diagrams Live workflow. With the Comparative Diagrams Setup tool in the left tool area you have all parameters available to select the desired application and standards. You can adapt the comparison view to perfectly fit your requirements.
The image inside the blue frame is the image that will be used as the matching chart image. On the very right side of the window you find all chart images which are available for the selected standard. If you click on an image, it will be positioned in the blue frame. To select another image, click on it and it will replace the previous selected image.
