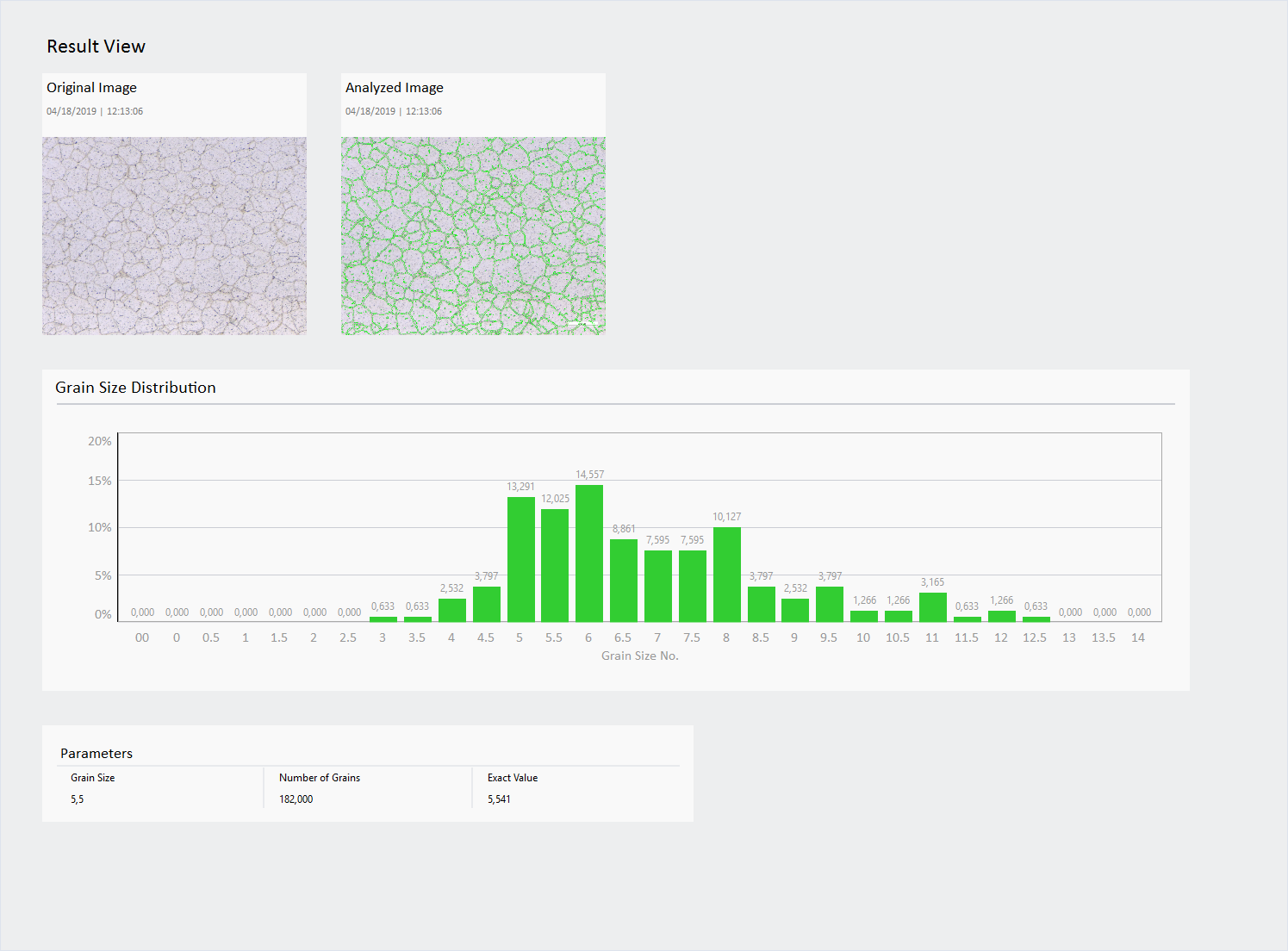

The result view of an analysis using trained models displays the original and the analyzed images and the distribution of the grain size. In the diagram, on the x-axis the grain size number classes are displayed and on the y-axis the number of grains for the respective class in percentage.

This description applies to the following workflows:

• Grain Size Analysis - AI Instance Segmentation - (Planimetric)
• Grain Size Analysis - Deep Learning - (Planimetric)
• Grain Size Analysis - Intellesis - (Planimetric)

For the description of the Result View with any planimetric method, see Result View Planimetric Method Workflow.

To display the overall results and the following additional parameters instead of the images, in the Image Selection tool, click Statistics:

• Mean Grain Size No.
• Standard Deviation
• Confidence Interval
• Relative Accuracy
• Number of Images
• Number of Grains
• Exact Value
