A pre-defined job template is included in the software, when you have licenced the Cast Iron Analysis module. You can modify the job template, see Working with Job Templates.

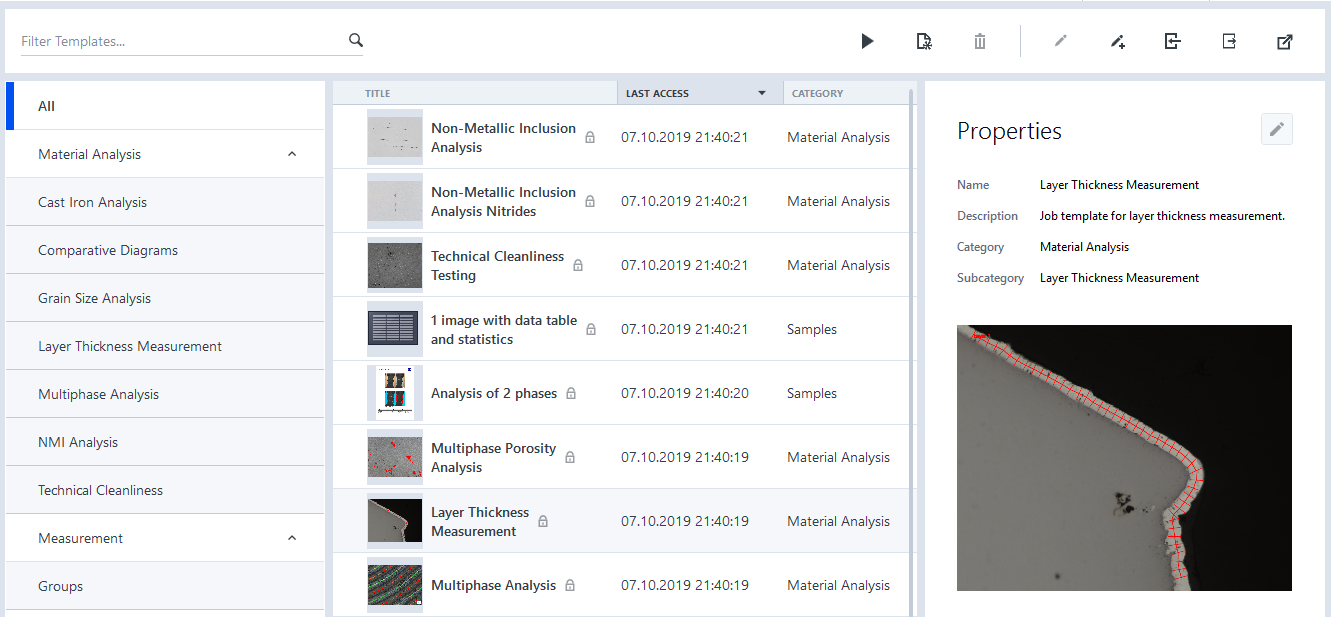

As a Supervisor you can access/edit the job template under Manage Templates. On the left side in the Categories list under Material Modules select Cast Iron Analysis.

In the templates list you see the available job template. Select the entry, and from the context menu, open the job template. The job templates generally contains three major tasks:

2 3 1
Cast Iron Analysis Workflow

1

Filling out an Input Form
In this step the operator has to fill out the input form with user and sample specific information, e.g. Sample Information, User Name, etc.

2

Performing the Analysis
In this step the analysis will be performed according to the selected method. The detailed workflow will be described in the following chapters.

3

Creating a Report
After the analysis a report will be generated containing the job results (images, measurements, etc.).
