1. You are in Free Mode.
  1. In the workbench bar, click Edit.
  2. The Edit Free Mode dialog opens.
  3. Select the category Utilities and add the desired acquisition workbench type to the workbench bar, e.g. 2D Acquisition.
  4. To save your workbench selection, click Confirm Setup.
  5. The CAD Import workbench is displayed.
  6. In the CAD File tool, click .
  7. Select a CAD file (*.brep, *.step, *.iges, *.dxf) from the file system and click Open.
  1. The CAD model is displayed in the image area. To change the view or display of the image, use the CAD Viewer tool. There you can also create a 2D image of the imported CAD model for further processing, e.g. measurements or overlay images. Note that only 2D views of the CAD models are supported.

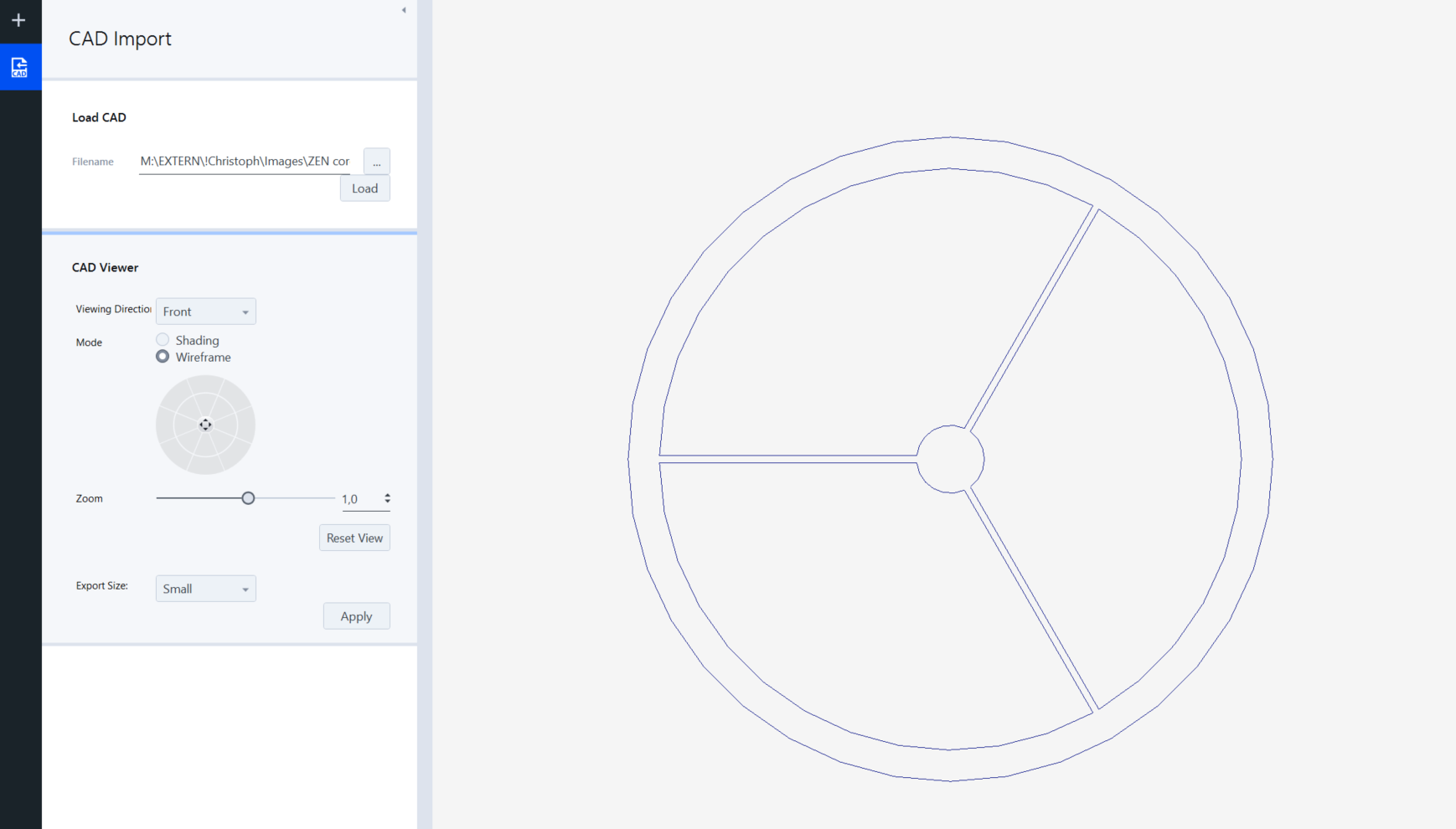

Imported CAD model (2D view)
Imported CAD model (2D view)
