1. With the USB cable, you have connected the foot switch to your PC.
  2. You have inserted the CD of the foot switch.
  1. Navigate to the CD in your file explorer, and double-click Usbhid Keyboard 2.40.exe to start the installation.

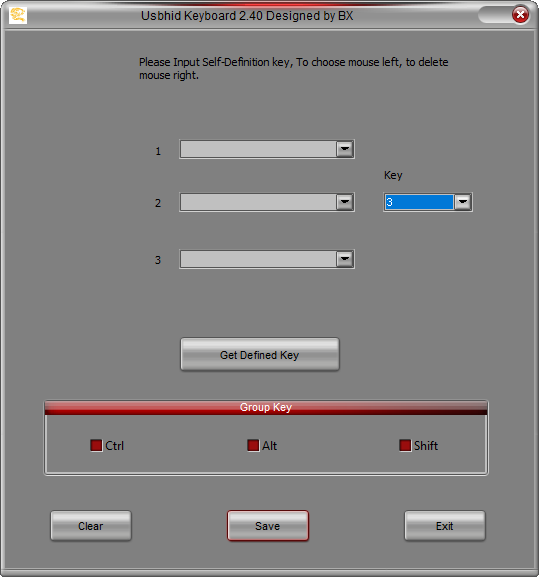

  2. The following dialog is displayed.
  3. Click Get Defined Key.
  4. The actual configuration of the foot switch is read out.
  5. Select field 1 to highlight the field and press the F2 key.

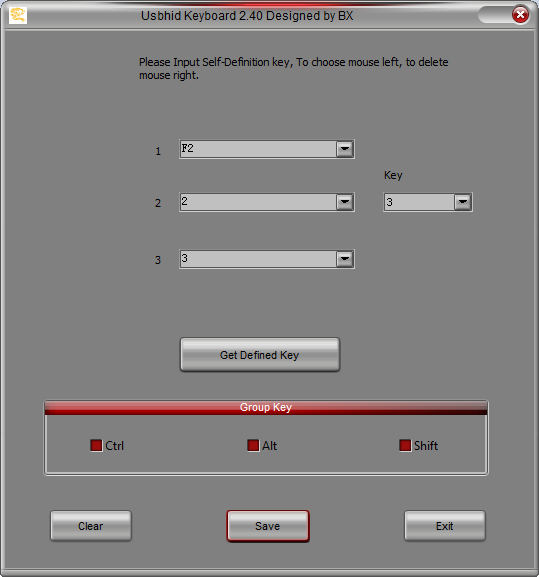

  6. F2 is displayed in field 1. You have activated the key in field 1.
  7. Click Save.
  8. A confirmation message is displayed.
  9. Click OK, then click Exit. Remove the DVD.
  1. You have installed the foot switch.
