Reclassifying Inclusions in ROIs to Artifacts
You have the option to reclassify multiple inclusions as artifacts in one step. We recommend this procedure if artifacts are falsely detected as inclusion, e.g. if the specimen was prepared sub optimally (scratches etc.).
- You have performed an analysis.
- You are in the Field Based Inspection view.
- In the tiles region image, zoom in to identify objects which should be marked as artifacts, and click Mark ROI.
- The cursor is activated.

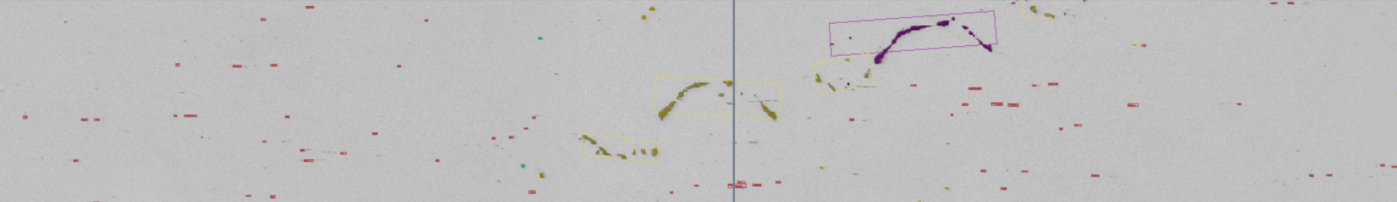

- Click the left mouse button to draw a polygon line around the detected inclusions that you want to reclassify. This is indicated by a red polygon line. Click the right mouse button to confirm the drawing.

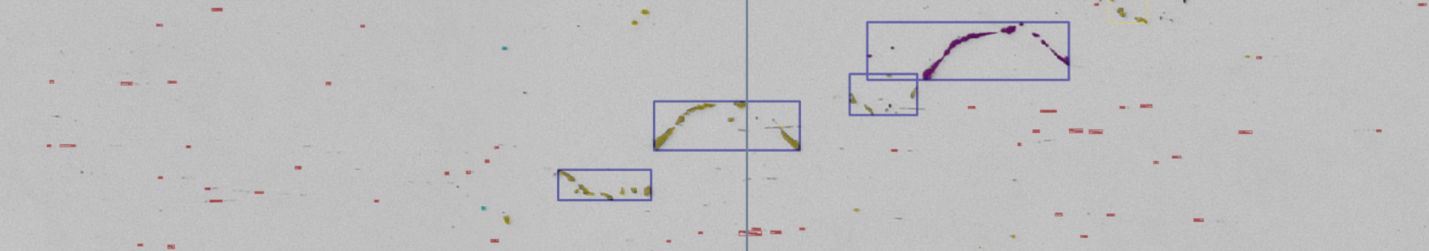

- All inclusions within the frame and those touched by the frame are aligned to X- and Y axes and marked with violet rectangles for reclassification.
- Click Classify as Artifacts.
- The marked inclusions in the drawn region have changed to type Artifact. The polygon disappears.
- The results in the Field Statistics tool are updated accordingly.
