Once you have applied annotations, angles or other graphical elements to your image, you can format each of them separately. It is only possible to format the elements in the Interactive Measurements workbench. If the formatted element is available in the Topography Measurements workbench, the applied format will be used there as well. The following tools of the workbenches correspond:

1. In the Interactive Measurement workbench, you have added text or measurements to an image, e.g. a distance measurement.


1. Select the element, and from the context menu, select Format Graphical Elements.

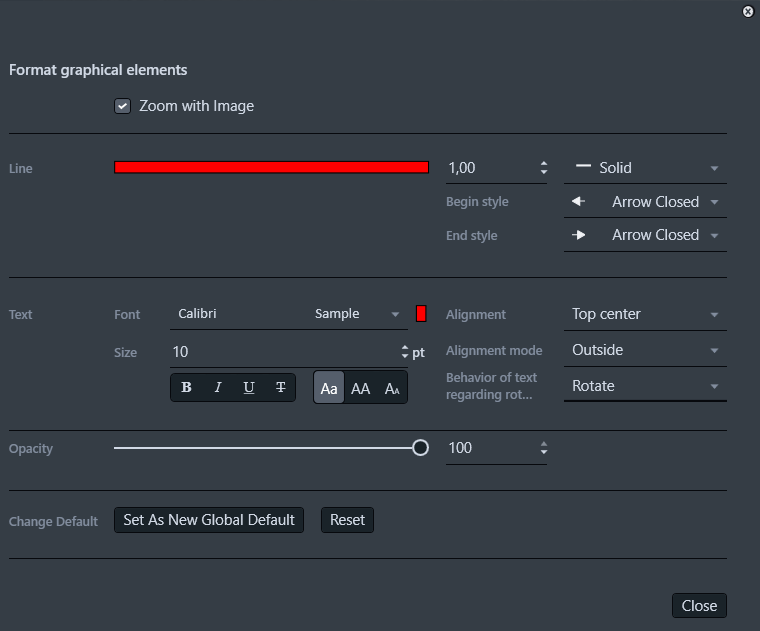

2. The following dialog is displayed.

2. Format the graphical elements according to your needs, e.g., click on the red line and choose a different color. Note that it is not possible to adapt the font size for a tool of the Topography Measurements workbench. To use the new formats for any measurement of this tool in both workbenches, click Set As New Global Default, and click Close.
3. From now on, the format settings are used for all measurements of the configured tool, and for the corresponding tools of the Topography Measurements workbench.
