- You have applied the shading correction, see Applying the Shading Correction.
- The Light Path Editing tool is selected, see Light Path Editing Tool.

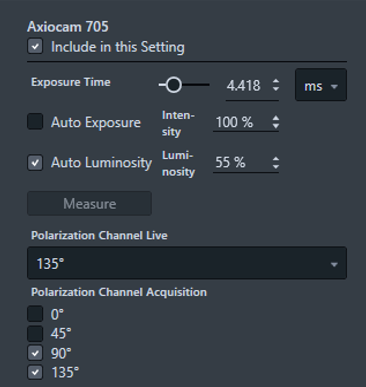

- In the Light Path Editing tool, define the initial camera settings for Axiocam 705 pol.
- To do so, perform the following:
- Select a suitable luminosity value.
- Click the Measure button.
- Activate the Auto Luminosity checkbox.
Note that the measure button is only active when Auto Luminosity is not activated. For more information, see POL Camera Technology and Applying Polarization Channel.
- You have defined an Image Acquisition Profile.
- You have configured initial image acquisition settings for your microscope hardware and camera. Settings recommended for ISO 16232 and VDA 19.1. For more information, see VDA 19 Part 1; Inspection of Component Cleanliness and ISO 16232 Road Vehicle. Cleanliness of Components and Systems.
- In the next step, you define the tiles region setting.
